How to Build a Professional Tilta Rig for the RED Epic Camera

Learn practical steps and expert tips for assembling a Tilta rig tailored to the RED Epic, including shoulder mounts, follow focus, matte boxes, and power solutions.

This article helps video producers and cinematographers decide how to plan, assemble, and optimize a Tilta rig for the RED Epic camera to ensure smooth production and post workflows.

Why a Custom Tilta Rig Matters for Your RED Epic Shoot

When working with the RED Epic, a precision-engineered camera known for its image quality and modularity, your rig setup can make or break the shoot. A well-built Tilta rig not only protects the camera but also offers flexibility in mounting accessories, balancing weight, and streamlining operator movement. The right rig setup reduces fatigue during handheld shots, speeds up lens changes, and ensures stable, repeatable focus pulls — all essential for professional results.

Starting with the Tilta RED Epic/Scarlet Rig Kit

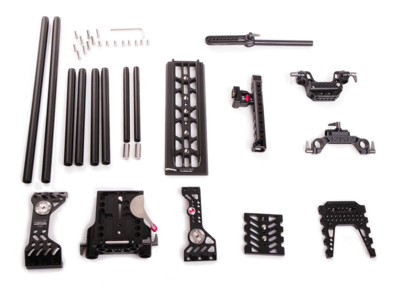

The foundation of your build is the Tilta RED Epic/Scarlet Rig Kit. Made from precision-machined anodized aluminum, this kit provides a robust cage around your camera with multiple mounting points and options. It includes rails, a baseplate, dovetail, and a top handle, giving you a solid platform to add components. This cage protects the camera body while allowing quick attachment of accessories like monitors, matte boxes, and follow focus systems.

Adding Mobility: The 19mm Dovetail Shoulder Mount System

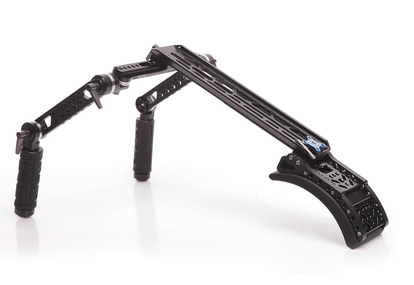

For handheld or shoulder-mounted shooting, the Tilta 19mm Dovetail Shoulder Mount System is a game changer. Its dovetail plate allows you to slide the camera forward or back to balance weight perfectly, reducing operator strain. Adjustable rosette handgrips and a padded shoulder pad offer comfort during long takes. Plus, threaded mounting holes let you add battery plates or other accessories securely. This system makes switching from tripod to handheld fast and ergonomic.

Precision Focus with the Single-Sided Cinema Follow Focus

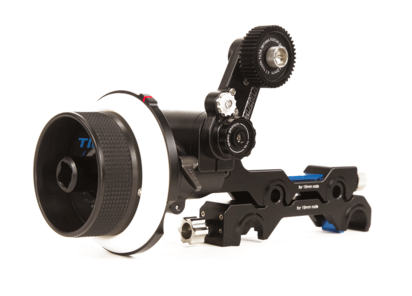

Focus control is critical on any narrative or commercial shoot. The Tilta Single-Sided Cinema Follow Focus offers a 1:1 gear ratio, eliminating play and slippage for smooth, precise pulls. It’s highly customizable — you can adjust tension, switch sides, swap gears, and position it on either 15mm or 19mm rods. The kit includes marking discs and gear rings, plus a whip and crank for versatile operation. This follow focus adapts to nearly any lens or rig configuration, making it a premium choice for professional focus pulling.

Controlling Light and Lens Flare with the Carbon Fiber Matte Box

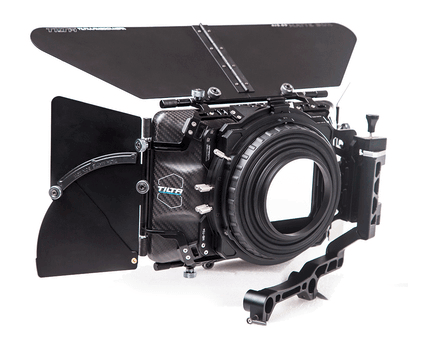

Protecting your lens from flare and controlling light is essential for clean, cinematic images. The Tilta 4x5.65" Carbon Fiber Matte Box features two rotatable filter trays and a swing-away design for quick lens swaps. Its carbon fiber construction keeps weight down without sacrificing durability. Compatible with 15mm and 19mm rods, this matte box effectively flags unwanted light and supports multiple filters, helping you maintain creative control on set.

Powering Your Rig: Battery Plates and Monitor Integration

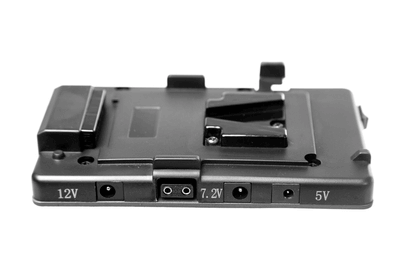

Power management is often overlooked but critical for uninterrupted shooting. While RED Bricks provide some power, professional battery plates like ikan’s Multiple Output V-Mount Battery Plate offer superior flexibility. This plate powers your RED camera via P-tap to Lemo cables and simultaneously supplies 12V, 7.2V, and 5V outputs for monitors, audio recorders, or DSLR cameras. Pairing this with a high-resolution monitor such as the ikan d7w (1280x800, 3G-SDI) gives you real-time image evaluation and waveform tools essential for exposure and focus accuracy.

Putting It All Together: Workflow Tips and Post-Production Handoffs

Assembling your Tilta RED Epic rig is only part of the story. Plan your pre-production to include rig checks, balancing, and test runs to avoid surprises on set. During production, maintain clear communication with your focus puller and camera assistant to leverage the rig’s modularity. After the shoot, ensure all media and metadata are securely backed up and that camera settings and rig configurations are documented for post-production. A well-planned rig setup simplifies editing, color grading, and VFX workflows by delivering stable, high-quality footage with consistent metadata.

FAQ

What are the key benefits of using a Tilta rig with the RED Epic?

A Tilta rig offers modular protection, multiple mounting options, improved ergonomics for handheld shooting, and compatibility with professional accessories like follow focus and matte boxes, all of which help streamline production and improve footage quality.

Can I customize the Tilta follow focus for different lenses?

Yes, the Tilta Single-Sided Cinema Follow Focus is highly adjustable with interchangeable gears, tension settings, and rod compatibility, making it suitable for a wide range of lenses and rig setups.

How do I ensure my RED Epic rig is balanced for handheld shooting?

Using the 19mm dovetail shoulder mount system, you can slide the camera forward or backward on the dovetail plate to find the optimal balance point, reducing operator fatigue and improving shot stability.
