Canon 5D Mark III Firmware 1.2.1 Review: What Filmmakers Need to Know

Discover how Canon 5D Mark III's firmware 1.2.1 update impacts clean HDMI output, audio monitoring, and external recording workflows. Make smarter production decisions with

Help filmmakers and production teams understand the real-world effects of the Canon 5D Mark III firmware 1.2.1 update on shooting, audio monitoring, and post-production workflows.

Understanding the Firmware Update: What Changed and What Didn’t

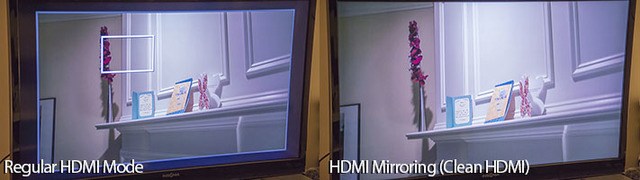

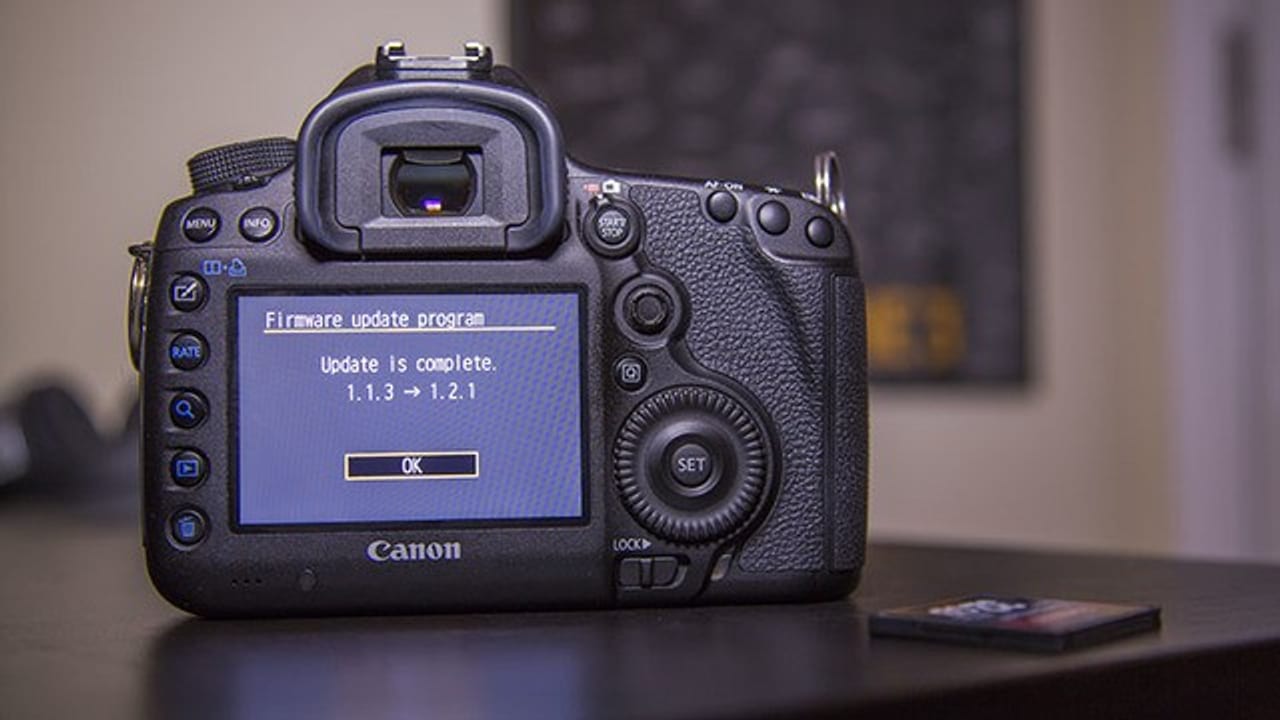

After months of anticipation, Canon released firmware 1.2.1 for the 5D Mark III, promising clean HDMI output—a feature many filmmakers eagerly awaited. In practice, this update enables an uncompressed 4:2:2 8-bit video signal through HDMI, which is a significant step up from the camera’s internal recording. However, the update falls short in some key areas: audio is still not transmitted via HDMI, and some hoped-for improvements in sharpness or dynamic range remain unchanged. Knowing these limitations upfront is crucial for planning your shoot and post-production workflow.

Planning Your Production Workflow Around HDMI and Audio Limitations

The absence of audio over HDMI means you’ll need to maintain a two-system recording setup: one for video via an external recorder capturing the clean HDMI feed, and another for audio, typically recorded separately through XLR inputs or dedicated audio recorders. This setup requires careful synchronization in post, since tools like PluralEyes can’t sync footage without reference audio embedded in the video file. To avoid headaches, use clear slate markers and maintain meticulous shot logs on set. Also, ensure your external recorder supports 1080p24 at 4:2:2 8-bit to take full advantage of the clean HDMI signal.

Maximizing Image Quality: Tips for Shooting with Firmware 1.2.1

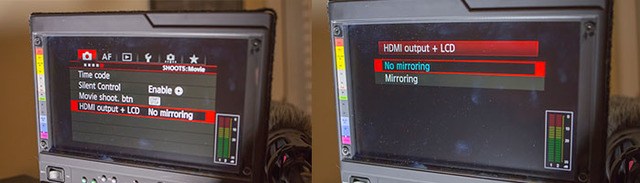

When using the clean HDMI output, set your camera’s HDMI frame rate explicitly to 24p if shooting progressive scan footage at 1080p24. Leaving this on Auto may result in unwanted interlaced footage, complicating post-production. The 4:2:2 color sampling improves color grading latitude and green screen keying compared to the internal 4:2:0 recording, but it’s still 8-bit, so push your grade conservatively. While sharpness gains are minimal, the cleaner signal can help maintain detail in fine textures like foliage. Remember to test your entire chain—from camera through recorder to editing software—to confirm settings and compatibility before the shoot.

Post-Production Considerations: Syncing, Editing, and Color Grading

Since audio isn’t embedded in the HDMI feed, syncing external audio with your video clips is a manual process unless you record scratch audio on the camera. Keep your shot numbers and slate markers consistent to ease this step. Editing ProRes 422 footage from the external recorder in Premiere Pro or similar NLEs will give you more flexibility in color grading, especially for challenging shots involving green screen or subtle color transitions. However, expect the same 8-bit limitations as with internal recording, so avoid aggressive grading that can introduce banding or artifacts.

Making the Right Gear Choices for Your Canon 5D Mark III Setup

To fully leverage the firmware update, pair your 5D Mark III with a reliable external recorder like the AJA ioXT or Atomos Ninja V that supports 4:2:2 HDMI input. For audio, invest in quality XLR preamps and dedicated recorders to ensure clean sound capture. Use monitors with proper VU meters and headphone outputs to monitor audio levels effectively on set. Planning for these gear needs upfront will save time and frustration during production and post, ensuring your final video meets professional standards.

FAQ

Does the Canon 5D Mark III firmware 1.2.1 enable audio through HDMI?

No, despite adding clean HDMI video output, the firmware update does not transmit audio via HDMI. Audio must be recorded separately using the camera’s onboard inputs or an external audio recorder.

How can I sync audio and video when recording externally with the 5D Mark III?

Since audio isn’t embedded in the HDMI video feed, you’ll need to use slate markers and maintain detailed shot logs to manually sync audio and video in post-production.

What external recorders work best with the Canon 5D Mark III’s clean HDMI output?

Recorders like the AJA ioXT and Atomos Ninja V support 4:2:2 8-bit HDMI input and are well-suited to capture the clean video signal from the 5D Mark III.
